ST Blade Compact Fuse Blocks

$46.99 - $74.89 CAD

Number Of Circuits

4 circuits
8 circuits

Effacer

ALLER À LA DESCRIPTION DU PRODUIT

UGS BS_ST_BLADE_COMPACT_FUSE_BLOCK_MAIN Catégories Blue Sea Blocs de fusibles et fusibles, Blue Sea System Étiquette fuse-blocks-fuses

Retours et échanges

Ajouter à la liste de souhaits

Supprimer de la liste de souhaits

Description
Information complémentaire

Description

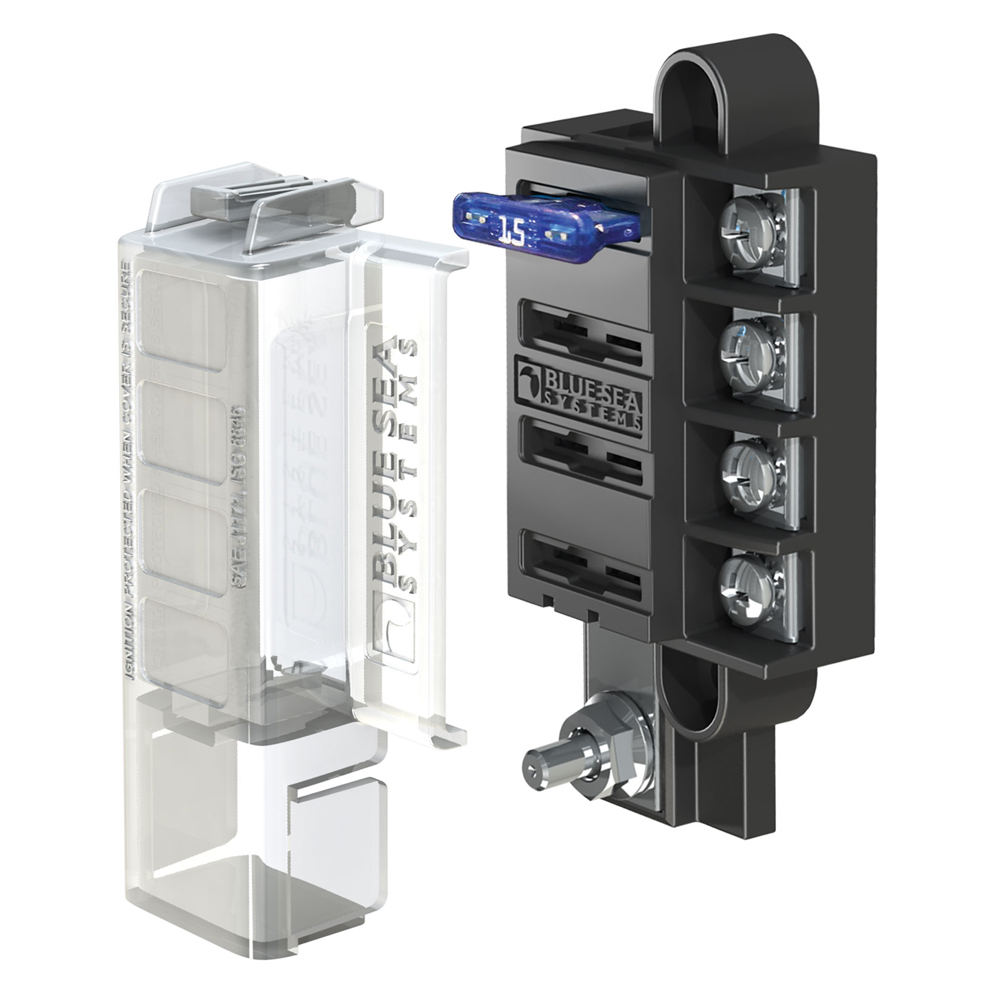

Blue Sea ST Blade Compact Fuse Blocks (Blocs de fusibles compacts à lames)

ST Blade Compact Fuse Blocks With Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Compact common source fuse block
Accepts ATO® and ATC® fast acting blade fuses
Single side entry wiring
Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Small format standard and custom labels available

Spécifications

Circuits:4 or 8
Maximum Amperage: 100A per block / 30A per circuit
Maximum Voltage:32V DC
Mounting: #8 Screw (M4)
Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
