Description

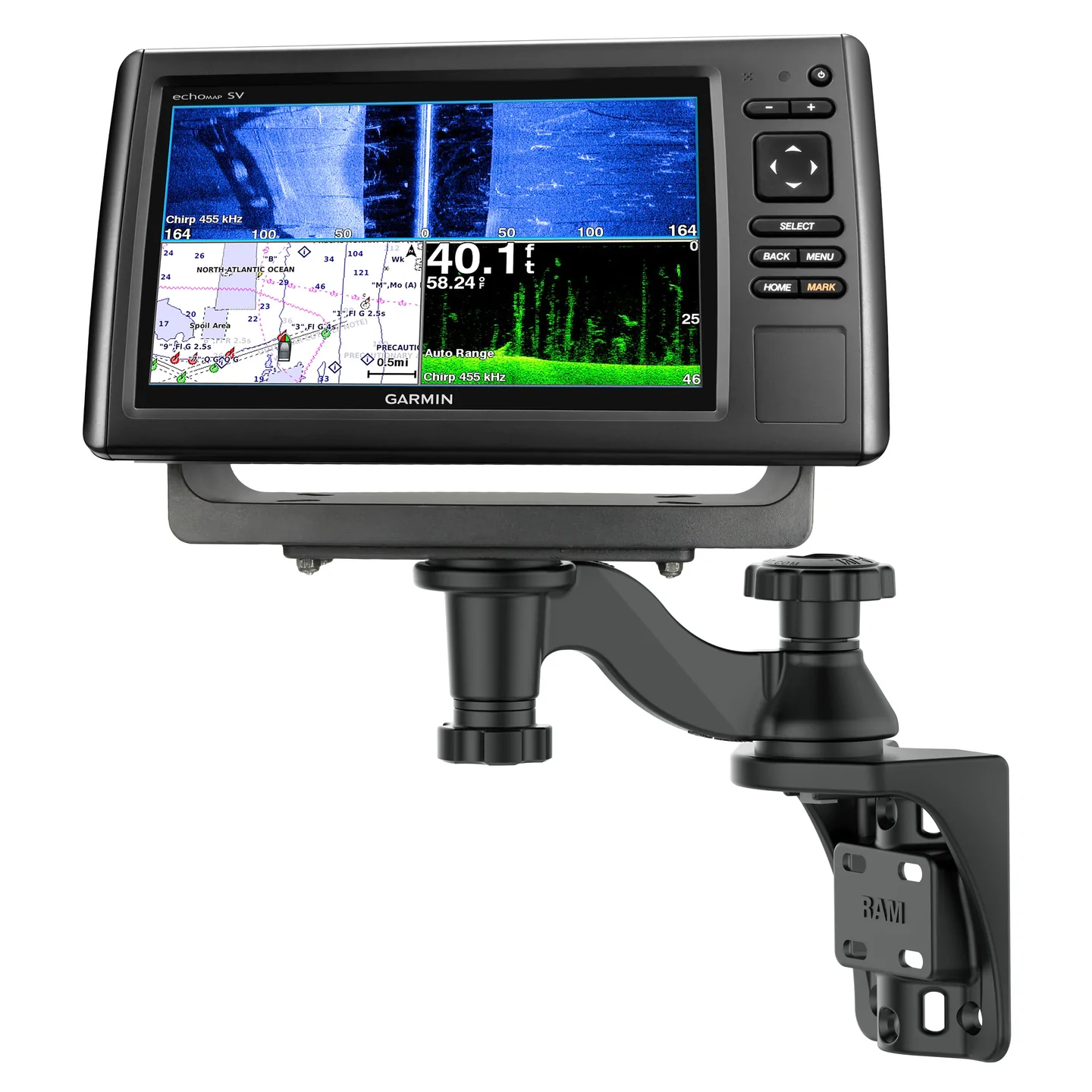

RAM Mounts Vertical 6″ Swing Arm Mount for Fishfinders

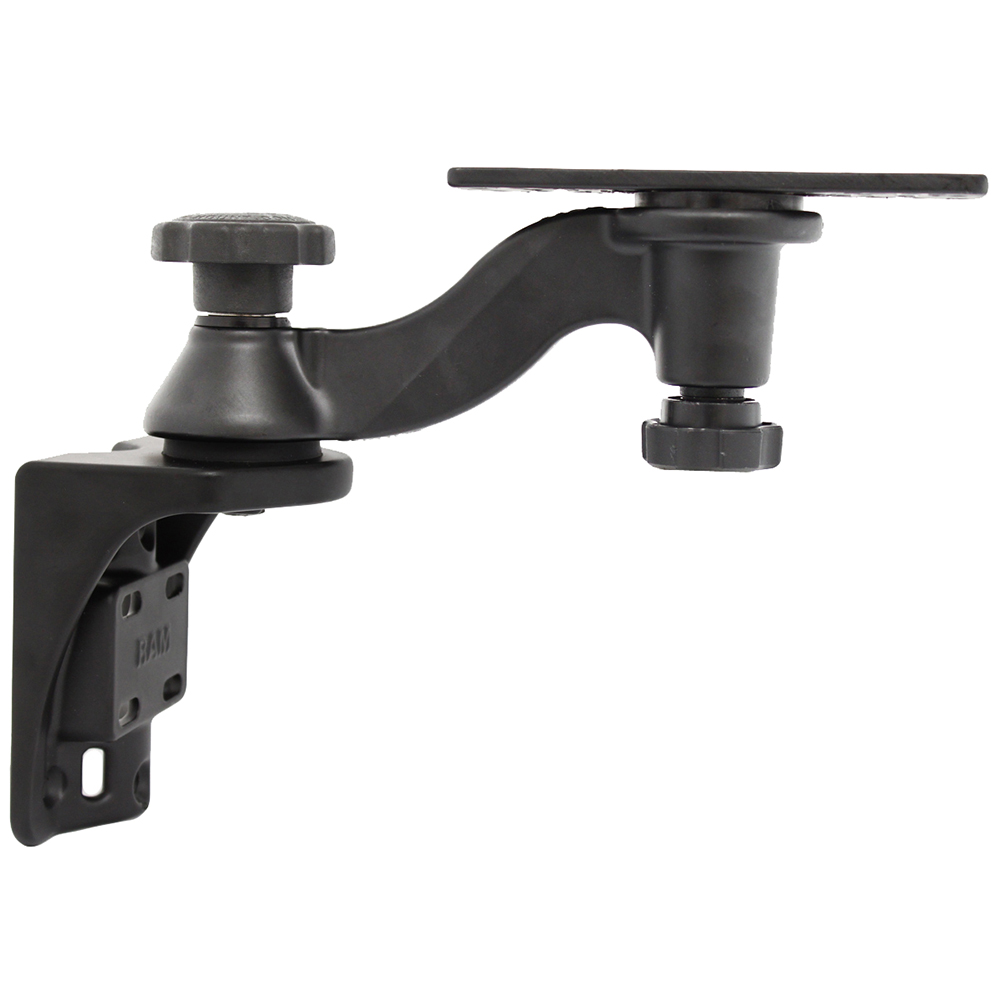

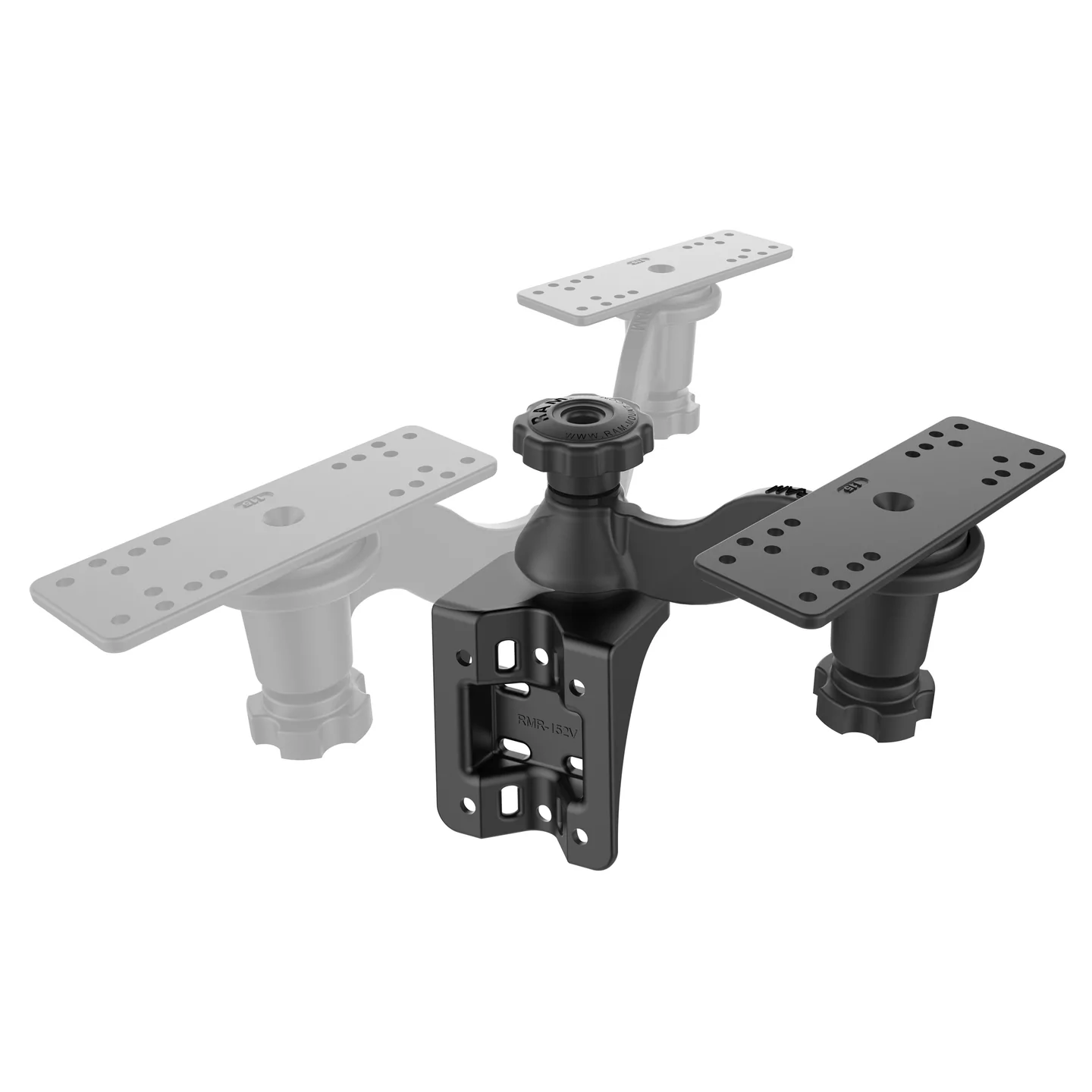

The RAM-109VU single swing arm mount consists of a 6″ long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25″ x 2″ plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Product Dimension: Overall Height: 8.45″  – Total Swing Arm Length: 6″

Plate Size: Top Plate: 6.25″ x 2″ – Bottom Plate: 3.97″ x 4.85″

Weight Capacity: 8 lbs

Materials: Marine-grade aluminum

Poids : 2.6 lb
