Description

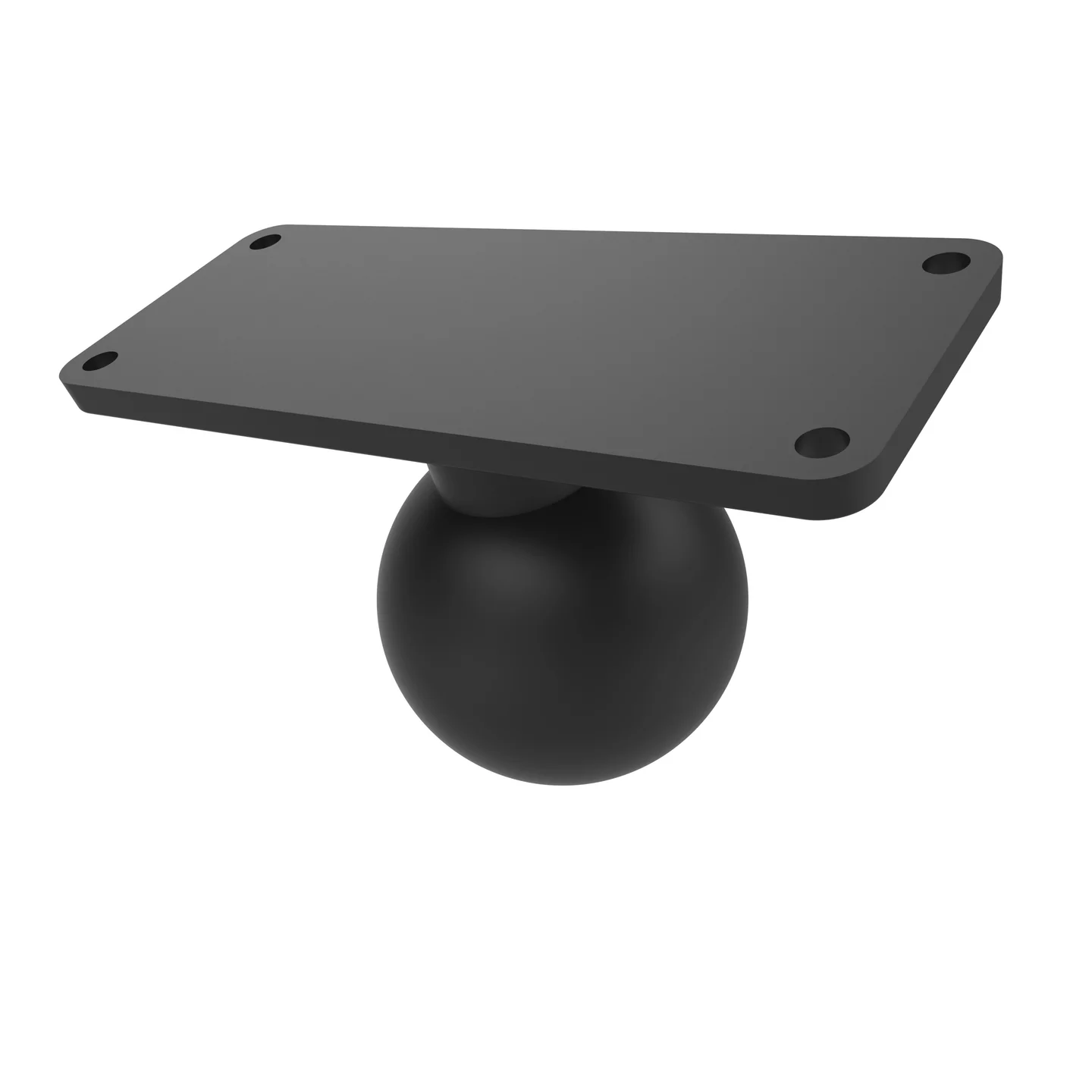

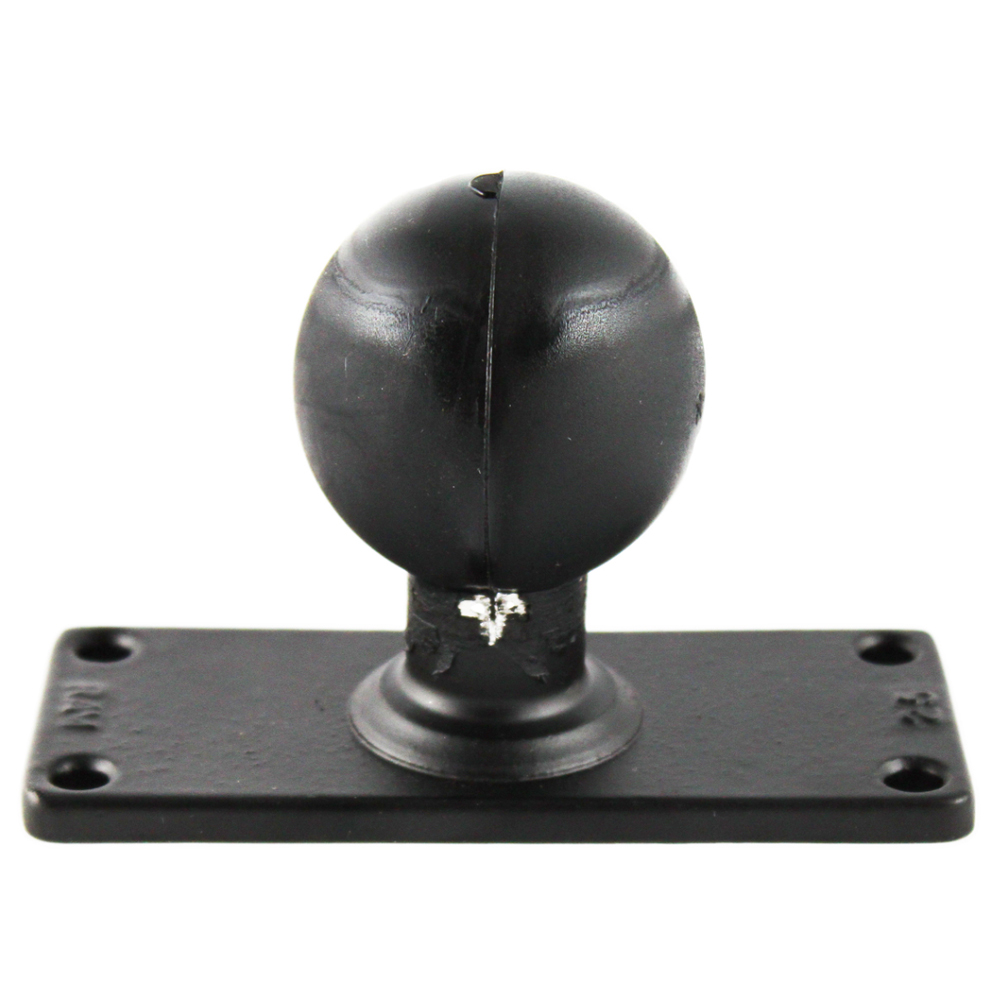

RAM Mounts Ball Base with 1.5″ x 4.5″ 4-Hole Pattern for Helix 8-9-10-12

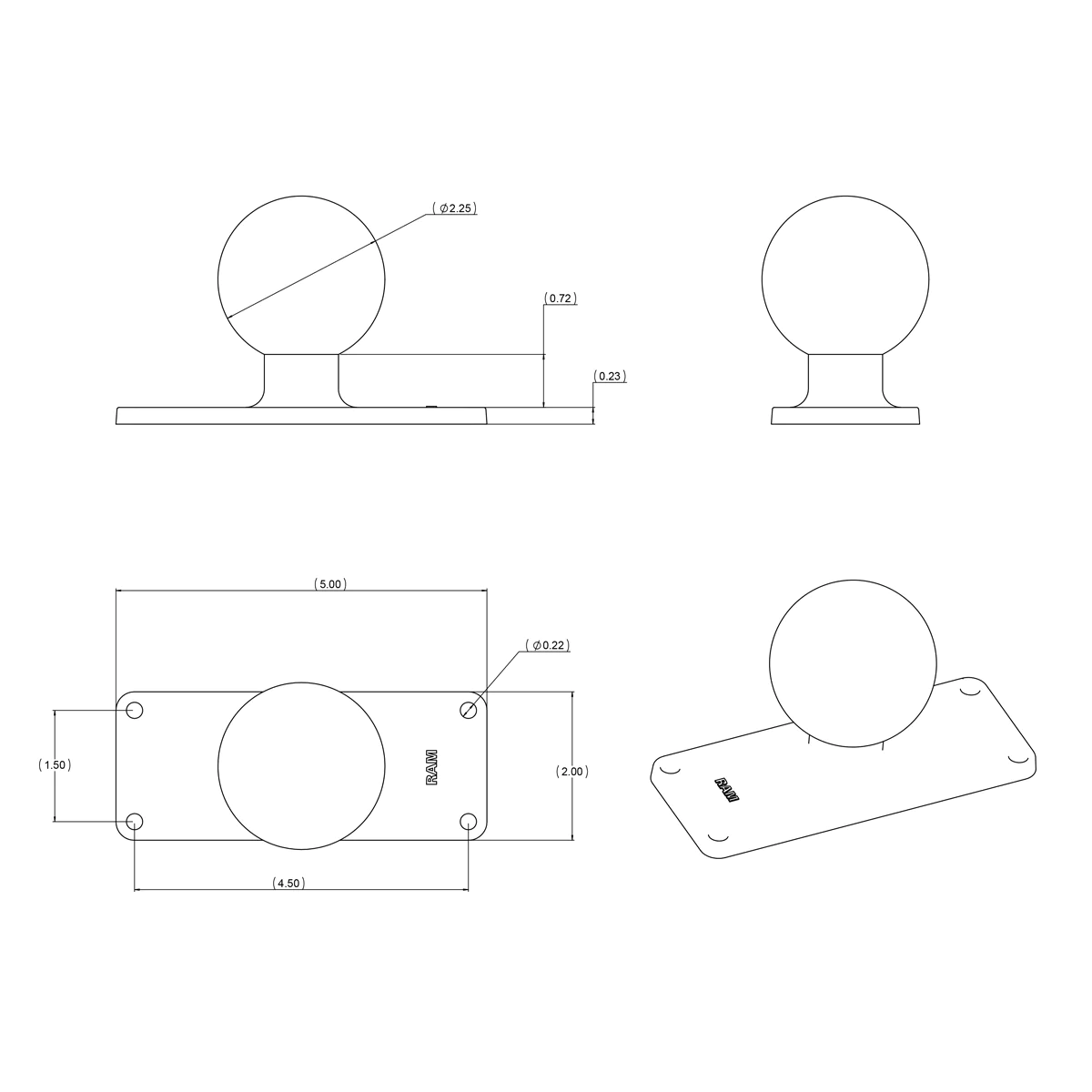

The RAM-D-202U-25 contains a 2.25″ diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1.5″ x 4.5″ center to center, compatible with Humminbird Helix 8, 9, 10 & 12 gimbal mounts.

Hole Pattern:  1.5″ x 4.5″

Plate Size:  2″ x 5″

Ball Size:  D Size (2.25″)

Weight Capacity:  Standard Use: 6 lbs – Heavy-Duty Use: 5 lbs

Materials: Marine-grade aluminum

Poids :  0.69 lb
