m-Series Mini Dual Circuit Battery Switch
m-Series Mini Dual Circuit Battery Switch
$82.99 CAD
- Returns & Exchanges
Description

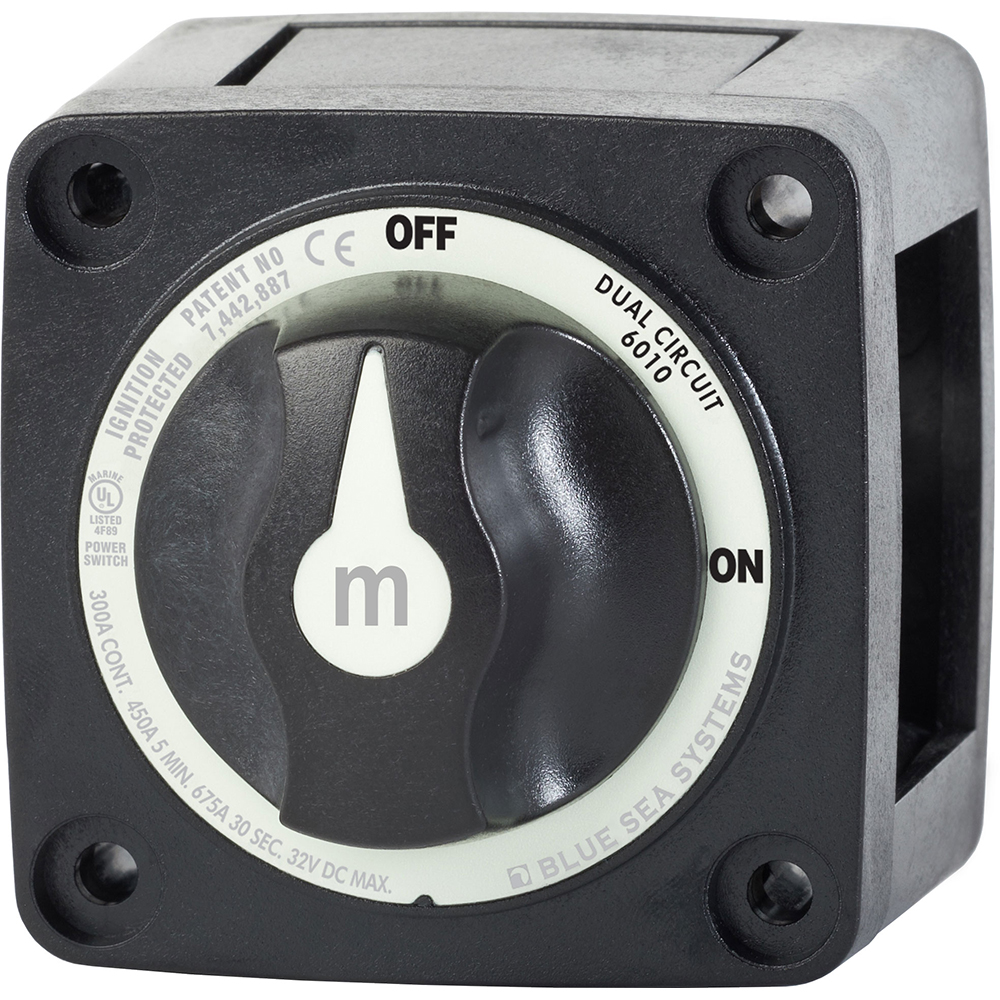

Blue Sea m-Series Mini Dual Circuit Battery Switch
m-Series Mini Dual Circuit Battery Switch – BlackSimultaneously switches two isolated battery banks.
Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8″-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 7 × 4 × 3 in |
