Description

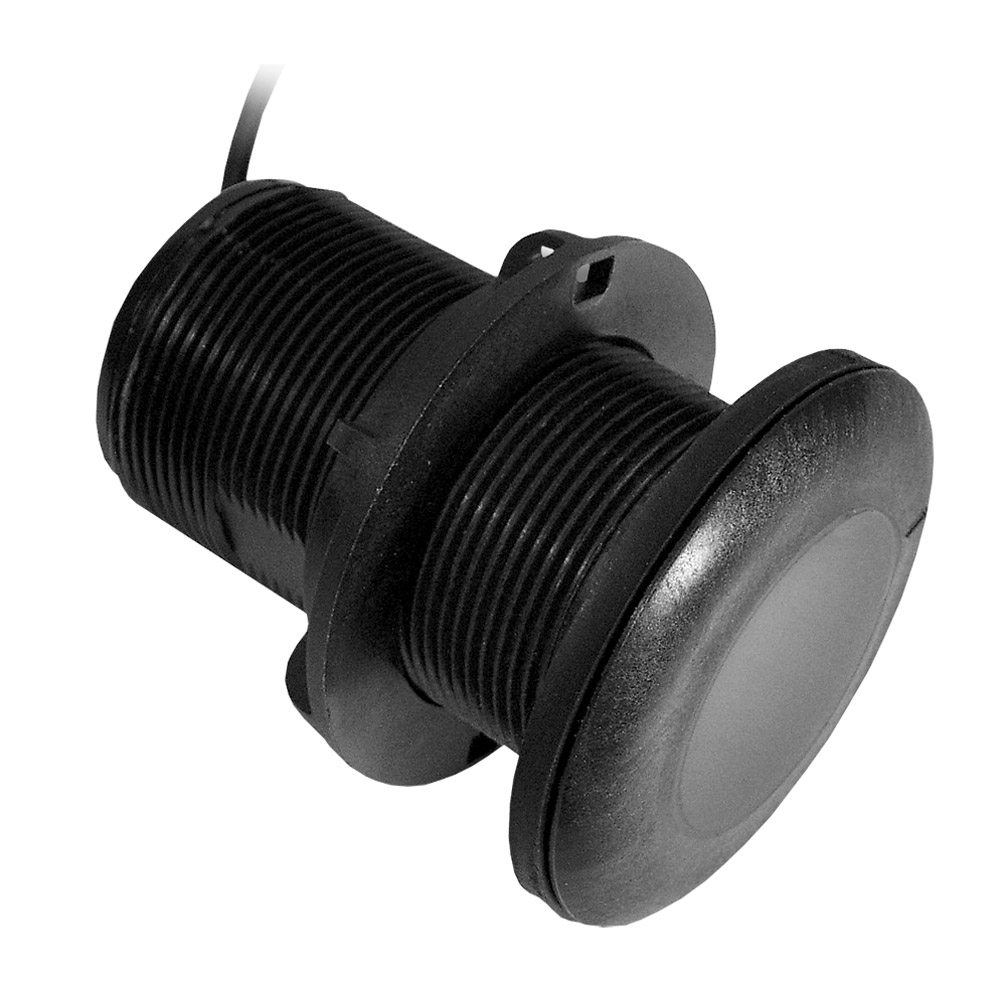

P19 Nylon 20 Degree Tilt Transducer 8 Pin

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700′). These nearly flush units minimize drag as only 5mm (2/10″) of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats

• Sailboats

Features

• Depth only or Depth and temperature

• Fixed 20° tilted versions for 16° to 24° hull deadrise

• Right angle cable exit offers low headroom and protection when transducer is stepped on

• Included rubber washer allows tightening of the hull nut to irregular hull surfaces

• Housings are ABYC H-27 compliant

• Optional temperature sensor

• Plastic housing

• Boat Size: Up to 9M (30′)
