Navico NAC-3 VRF Core Pack

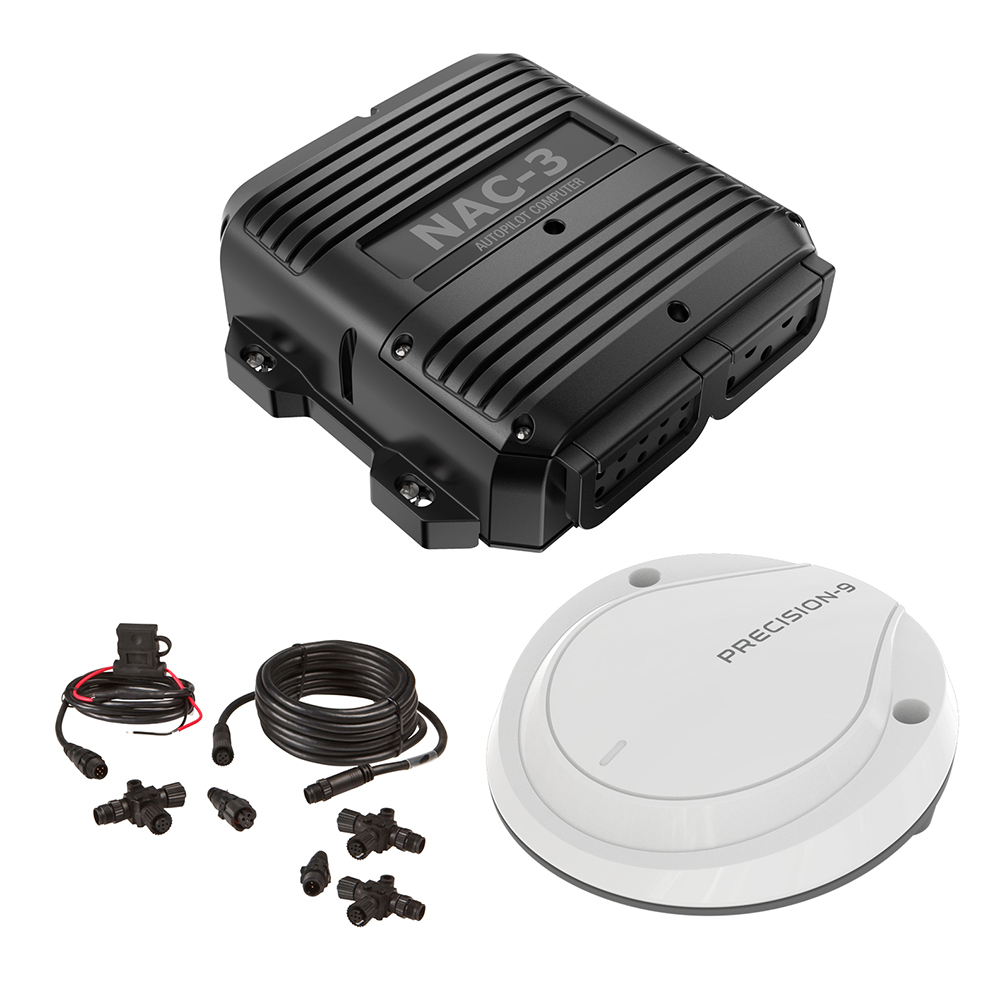

Navico NAC-3 VRF Core Pack – NAC-3, Precision-9 & N2k Starter Kit

Comprising of the high-current NAC-3 Autopilot computer, Precision-9 compass & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M(33′) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit

NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15′) N2K cable, 3 x T-connectors, 2 x network terminators

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000® connection

Specifications:

• Temperature, operation: 0 to +55°C
• Temperature, storage: -32 to +70°C
• Protection: IPx7
• Weight in Kg: 0.7kg, 1.6lbs
• Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31″ x 7.72″ x 2.58″
• Mounting: Bulkhead
• Construction: Plastic
• Color: Black
• Cable inlet: Grommet (Spare Incl)
• Local power supply: 12/24 V DC +10-30%
• NMEA 2000 Load Equivalent number (50mA): 1
• Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
• On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
• Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
• Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000
• NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
• Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
• External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
• IEC 61162-1 input (NMEA0183 In): 1 ch
• IEC 61162-1 output (NMEA0183 Out): 1 ch
• IEC 61162-1 speed: 4.8 & 38.4 kbaud
• NMEA2000: Certified (pending

Precision-9 Specifications:

• Dimensions: H: 36mm (1.42″), W & D: 119mm (4.69″)
• Weight: Module – 165g (5.8oz), Bracket – 130g (4.6oz)
• Supply and interface: 8-16 V via NMEA 2000
• Power consumption: 0.4 W
• NMEA 2000 Load Equivalence No. (LEN): 1
• NMEA 2000 ports (input/output): 1
• Calibration: Automatic (User Prompted)
• Repeatability: ± 1.0° (or better)
• Roll/Pitch range: ± 45°
• Heading accuracy: ± 2° after calibration
• Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
• Environmental protection: IPx7
• Compass safe distance: 0.5M(1.7′)
• Temperature range operation: -25 to +65°C (-13 to +149°F)
• Temperature range Storage: -30 to +70°C (-22 to +158°F)
