Description

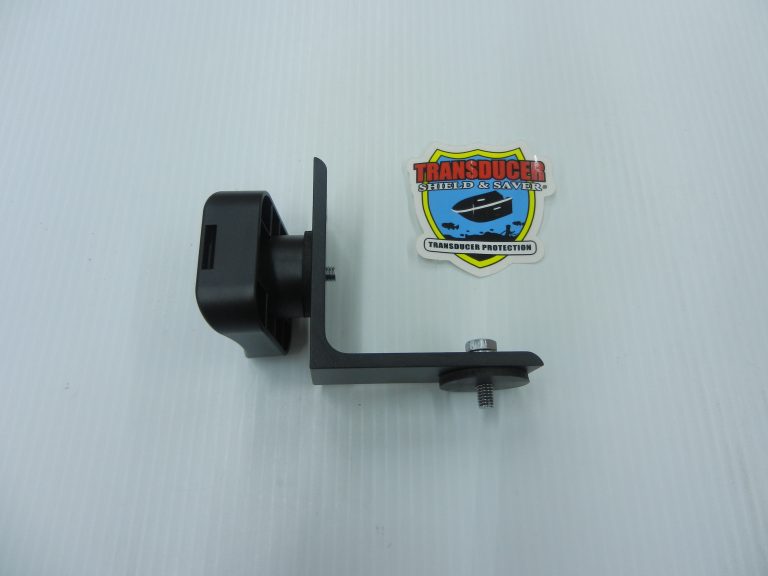

The Perspective Mode L Bracket is used to adjust the position of your Garmin Panoptix LiveScope transducer on a trolling motor shaft. One end of the L bracket attaches to the Garmin factory bracket and has two bolt holes available to adjust the height. The other end of the L bracket has one bolt hole to attach the Panoptix LiveScope transducer. It’s a very easy installation!

The Perspective Mode L Bracket measures 3″L x 3″H x 1-1/4″W and is built using 6061 x 3/16 aluminum angle and black powder coated. Oversized neoprene gasket washers between the plastic factory bracket and the L bracket and again between the L bracket and the transducer allows multi-positioning of the transducer without slipping. Neoprene is a synthetic polymer resembling rubber and is used because of its resistance to oil, heat and weathering.

With the Perspective Mode L Bracket you can adjust the position of your Garmin Panoptix LiveScope transducer, on the fly, to see all around and ahead of your boat plus an overhead view for shallow water.
