RAM Mounts Horizontal 6″ Swing Arm Mount for Fishfinders

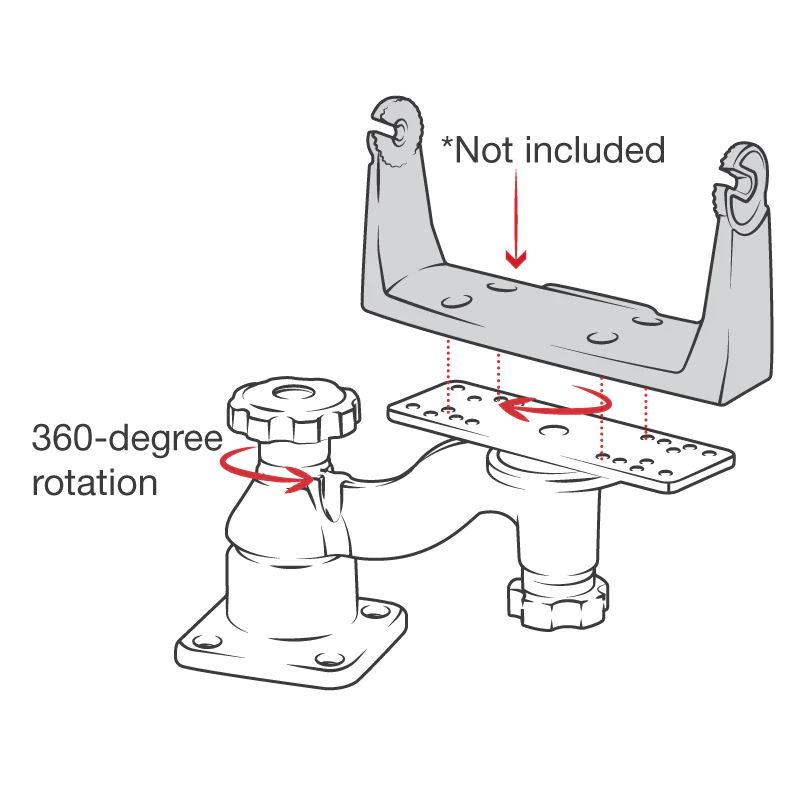

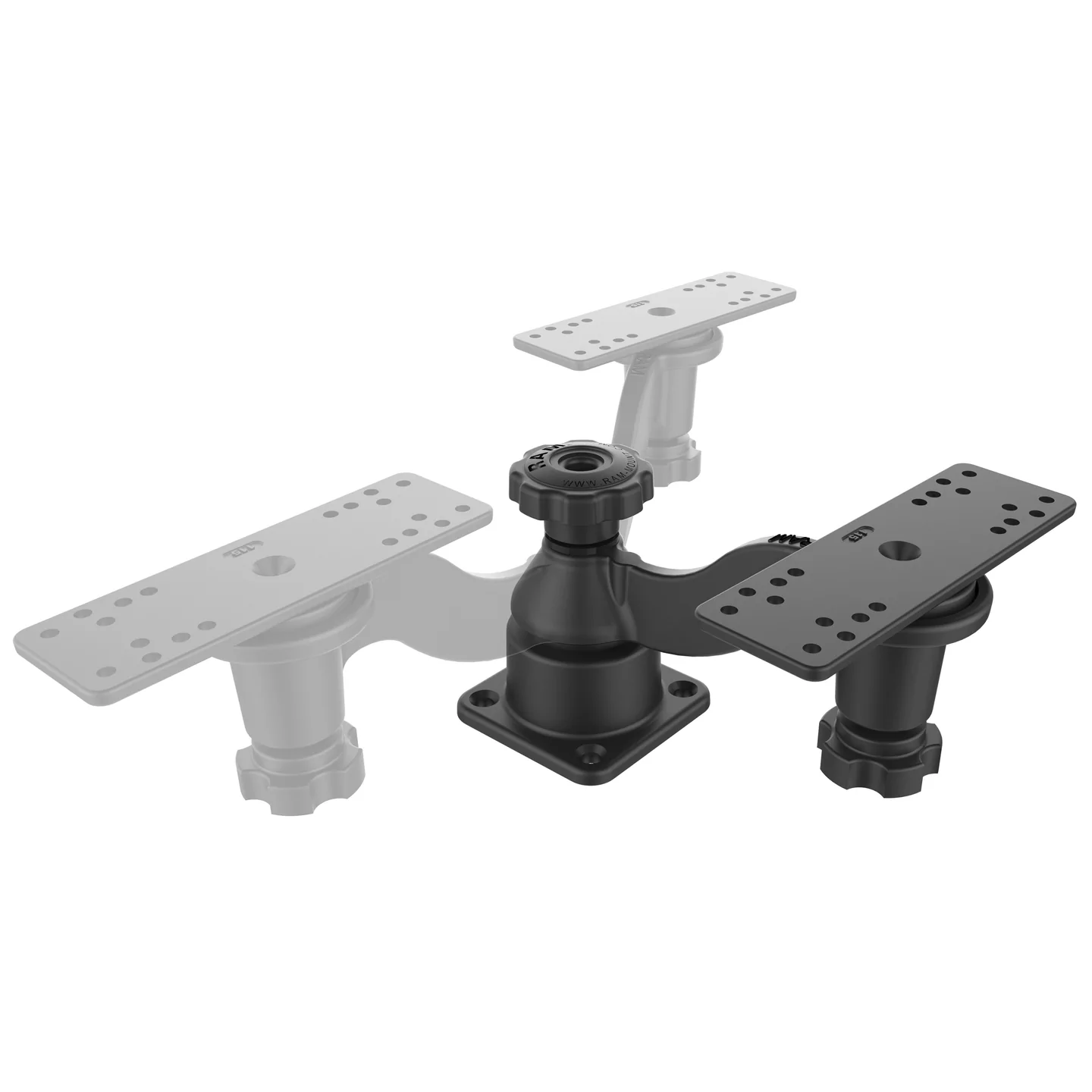

The RAM-109HU consists of a 6″ long bent swing arm mounted on a horizontal surface base. At the device mounting end is a rectangular 6.25″ x 2″ plate. There are two pivoting points on the mount: one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point allows a complete 360-degree rotation.

Product Dimension: Overall Height: 5.41″  – Total Swing Arm Length: 6″

Hole Pattern: Bottom Plate: 2.5″ x 2.5″

Plate Size: Top Plate: 6.25″ x 2″ – Bottom Plate: 3.47″ x 3.47″

Weight Capacity: 8 lbs

Materials: Marine-grade aluminum

Weight: 2.09 lbs
