Description

RAM Mounts Ball Adapter with Hardware for Select Garmin Fishfinders

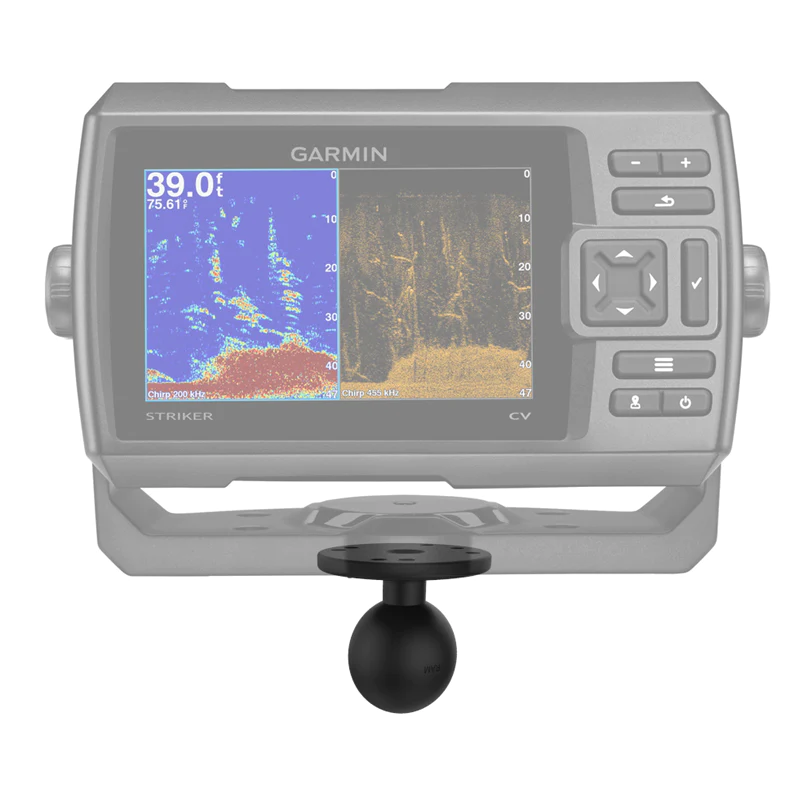

The RAM-202-G4U consists of a 1.5″ diameter rubber ball connected to a flat 2.5″ diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern. Included are 3x (#8-32 x 5/8” PH PD Mach Screws) and 3x (#8-32 SS Nylock Nuts) that will connect the RAM-202-G4U to the bottom of the Garmin echo^™.

Compatible with the following Garmin fishfinder models :

• Striker 4
• Striker 4dv
• Striker Plus 4cv
• Striker Vivid 4cv
• echo 100
• echo 150
• echo 300c
• ECHOMAP Plus 42cv
• ECHOMAP Plus 43cv
• ECHOMAP Plus 44cv
• ECHOMAP Plus 45cv

Hardware included:

• (3) #8-32 x 5/8″ Machine Screws
• (3) #8-32 Nylock Nuts

Hole Pattern:

• 4-Hole AMPS: 1.181″ x 1.496″
• 3-Hole 120-Degree: 1.812″ Diameter

Plate Size: 2.5″ Diameter

Ball Size: C Size (1.5″)

Weight Capacity:

• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs

Materials: Marine-grade aluminum

Weight: 0.25 lb
