Description

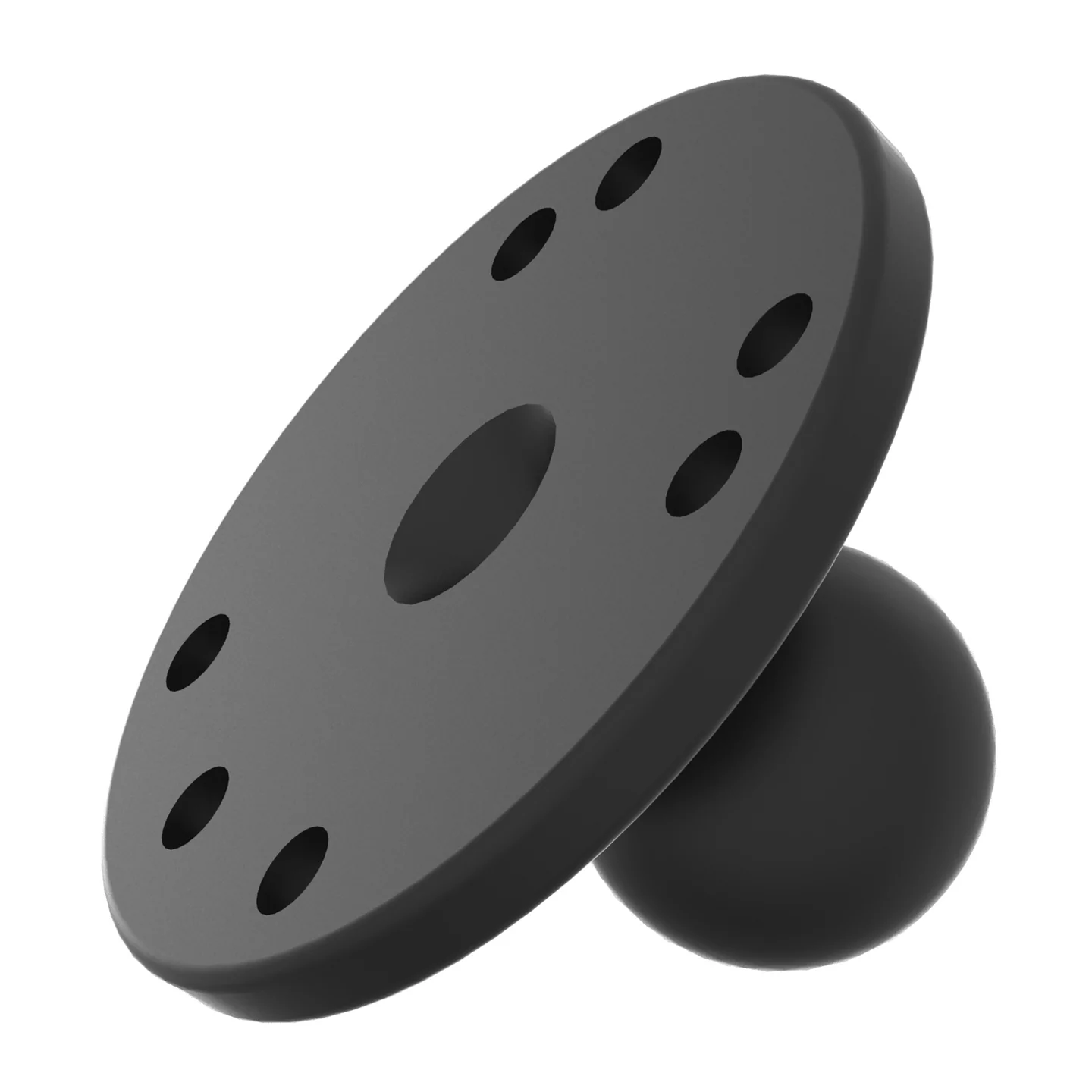

RAM Mounts Round Plate with 1” Ball

The RAM-B-202U consists of a 1″ B size rubber ball connected to a 2.5″ diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern. Made of powder coated marine grade aluminum.

Features:

• 2.5″ round plate connects to RAM^® device holders containing the universal AMPS hole pattern
• Included B size 1″ RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

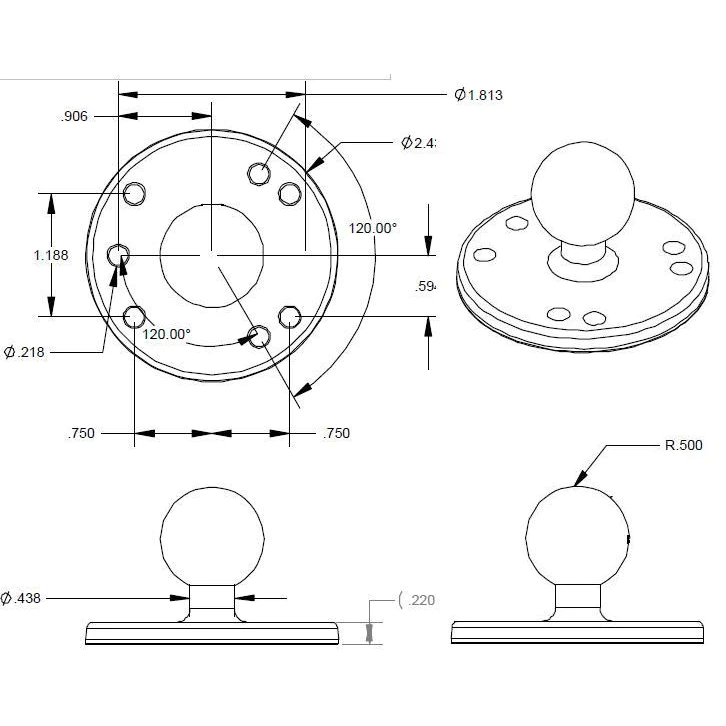

Hole Pattern: 4-Hole AMPS: 1.181″ x 1.496″ – 3-Hole 120-Degree: 1.812″ Diameter

Plate Size: 2.5″ Diameter

Ball Size: B Size (1″)

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials: Marine-grade aluminum
