RAM Mounts ATV/UTV 1” Ball Base for Rails up to 3.15″ in Diameter

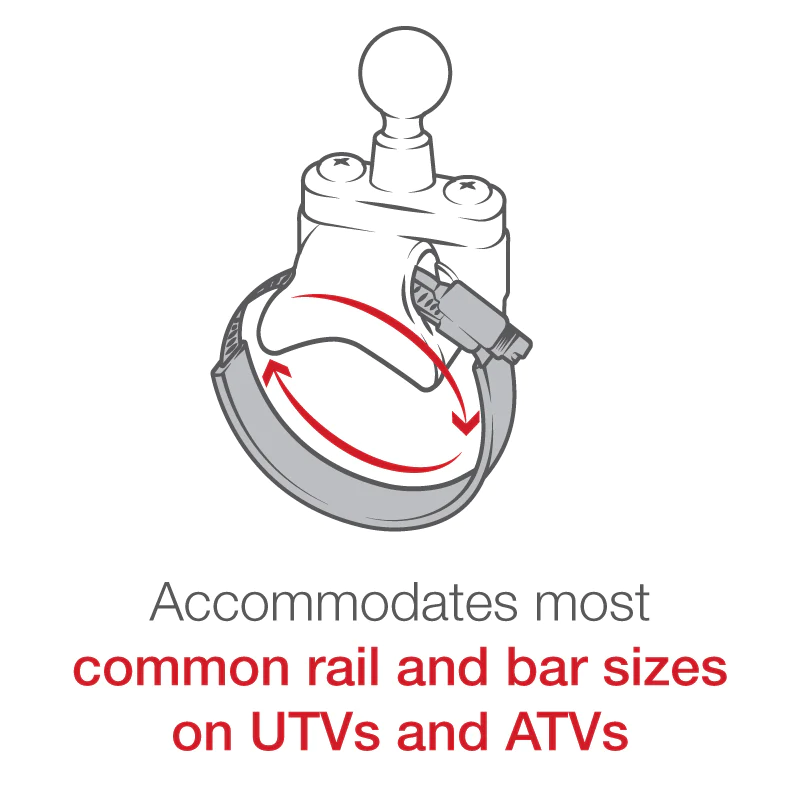

Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar sizes on UTVs and ATVs. With the strap clamp safely concealed in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal U-bolt, allowing you to modify the mount for another mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.

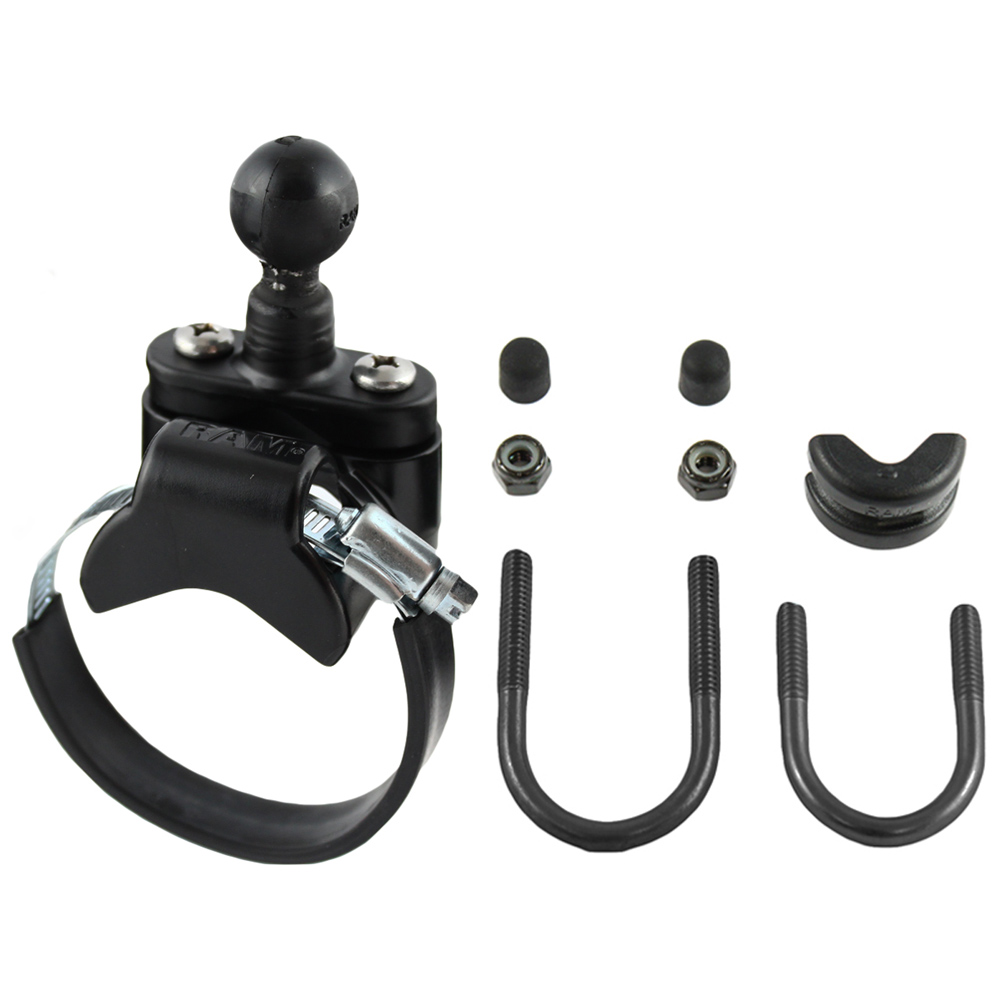

Hardware Included:

• Assembly Hardware
• (1) Strap Clamp Adapter
• (2) 1/4″-20 x 1″ Machine Screws
• (2) 1/4″-20 Nylock Nuts
• (1) Zinc Worm Drive Strap Clamp
• (1) 6″ Rubber Strip
• (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
• (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• (2) Rubber Caps
• (1) U-Bolt Spacer

Rail Accommodation Dimensions:

• Mount with Strap: 1.57″ to a maximum of 3.15″
• Mount with U-Bolt: 0.50″ to a maximum of 1.25″

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Material: High Strength Composite & Powder Coated Marine Grade Aluminum

Ball Size: 1″ Rubber Ball “B” Size
