Description

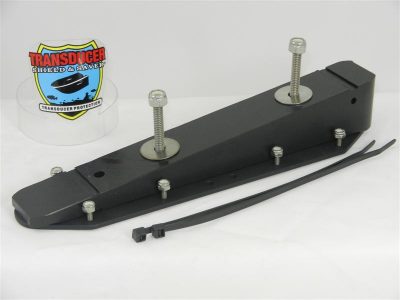

The TS-LSS2-2L is for a 10″ or 12″ hole shot plate or set back installation of the 10″ Lowrance® LSS2 Structure Scan transducer. It includes a black powder coated 1/8″ aluminum plate to hold in place and a black marine polyethylene wedge. The wedge is designed to angle the transducer correctly when the boat is in the water. This item does not fit the shorter Lowrance® LSS1 Structure Scan transducer. If you have the LSS1 Structure Scan transducer use the Transducer Shield® TS-LSS-2.

On Ranger boats which have a curved set back the WG-LSS2-FILLER is also required.

Please note that the TS-LSS2-2L is not suitable for jack plates that have a 90° angle with the transom. For this application, TS-LSS2-L Transducer Shield® and an L Bracket to bolt the assembly to the side of your jack plate is required.

Please note that when the transducer is attached to a set back, hole shot plate or the side of a jackplate, it will not track the bottom when up on plane because the transducer is out of the water. For bottom reading on plane, a transducer inside the hull will be required.

Do not choose this assembly for Atlas / T-H Marine hole shot plates.
